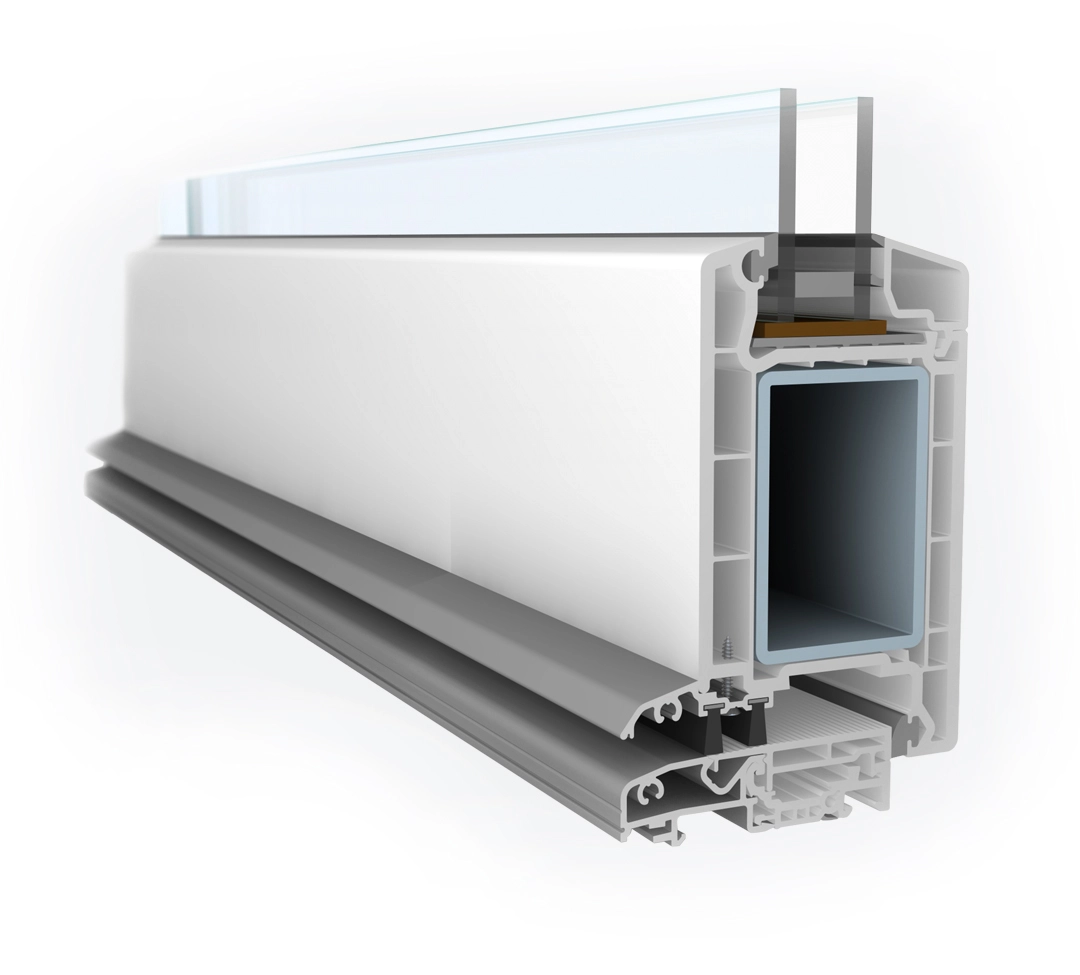

Polymer Swing Door VP-70

Profile

Installation depth:
70 mm, highest A class

Construction

A 5-chamber profile of the outside wall depth of 2,8 mm, seamless joint welding

Color

White, wood-imitating, solid veneers according to the RAL range

Fittings

Multi-point locking fittings of an increased anti-corrosion protection, optional Designo fitting, RC2 anti-burglar, Tilt-First

Seals

Two replaceable seals

Test Results

	Property	Criteria	Test method	Pass
	Adhesion	≥ 5 pli	ASTM C 794
Accelerated UV aging	Adhesion	≥ 5 pli	ASTM G 154
Elevated Temperature 176 F	Adhesion	≥ 5 pli	AAMA 711\| ASTM C 794
Thermal cycling	Adhesion	≥ 5 pli	AAMA 711\| ASTM C 794
	Water immersion	≥ 5 pli	AAMA 711\| ASTM C 794
	Water vapor permeability	min. 10 perms	ASTM E 96
	Damp surfaces		ASTM C 794
	Crack briging	≥ 5 pli	ASTM C 1305
	Water penetration around nails	≥ 1.2 in	ASTM D1970
	Water resistance	no deterious effects	ASTM D 2247
	Air leakage of air barrier assemblies	≤ 0.04 cfm/sqft at 1.57 psf	ASTM E 2357
	Surface burning characteristics	class A	ASTM E 84

Meets the Acceptance Criteria:

ICC-ES AC148-21 AAMA 714-19 ABAA
